4-axis CNC Machining Center

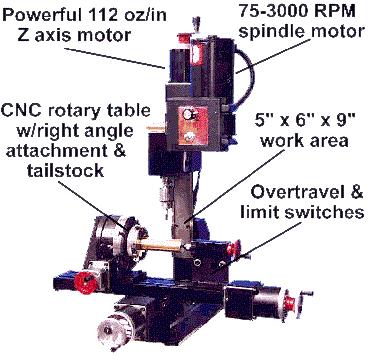

4-Axis CNC Machining Center Animation
Sale Graphic for machining

Choose between either of the following packages:
Mighty Drive Power Supply
OptiStep Plus Controller Card
MN400E w/ Mighty Drive
OptiStep Plus Controller Card w/ Mighty Drive
MN400E Motion Controller w/ Mighty Drive

This 4 axis CNC system comes complete with everything you need for 4 axis operation-all you provide is a low cost PC and you're ready to make jewelry, rings and custom gears under CNC control without special attachments. Now you're no longer tied down to a manual machine!

High Speeds
The latest technology constant current chopping drives used in the MightyDrive power electronics result in high feed and rapid rates, while the OptiStep , or MN400E motion controllers insures maximum reliability with the use of opto-isolated inputs and outputs on ALL connections. Other systems may use direct connection or a printer port whose reliability is not acceptable for industrial applications.
Low Cost Accessories
Since our CNC machines are designed around existing manual machines, they accept standard tools and accessories. This means you won't have to spend a fortune on specialized or custom tooling. The most commonly needed ones are included with the package for the convenience and added savings. We offer a full assortment of low cost tools and accessories.
Quality
MicroKinetics CNC systems are expertly built and performance tested to conform to stringent standards. Detailed assembly and testing procedures and checklists are followed to insure consistent, repeatable, high quality.  All components are individually tested and the complete system is tested again as a unit before shipment.
Industry Leader
MicroKinetics offers the best reasonably priced CNC systems and knowledgeable technical support in the industry. Five year warranty on electronics and one year warranty on mechanics. MicroKinetics has been offering CNC systems to educational institutions, hobbyists, research facilities and small machine shops since 1985 using the same business philosophy, expert engineering and technical support!
SPECIFICATIONS:
X-axis Travel

9.00"
Y-axis Travel

 5.00"
Z-axis Travel

6.50"
Resolution

.0001"
Backlash

.003" Max.
Hole thru Spindle

0.405"
Spindle Nose Thread

3/4"-16 TPI
Spindle Taper

#1 Morse
Spindle Speed Range

75-2800 RPM
Spindle Motor

1/2 HP DC
Table Size

2.75 × 13"
SYSTEM INCLUDES:
  • Deluxe mill w/ resettable handwheels
  • CNC rotary table with 3 jaw chuck
  • Stepper motors (3) 175 oz-in
  • MightyDrive high performance power driver
  • OptiStep Plus-PC or MN400E motion controller
  • MillMaster Pro G -code control & graphical software
  • Limit switches, cables, and technical manuals
  • Included accessories:

Headstock Spacer Photo

Drill Chuck Photo

 Milling Vise Photo
Mill Headstock Spacer Block
#870-1297-000
Drill Chuck
#870-3072-000
Milling Vise
#870-3551-000
4 Jaw Chuck Hold-Down Photo Hold-Down Set Photo 3/8" End Mill Holder Photo
4-Jaw Chuck Hold-Down
#870-3058-000

Hold-Down Set
#870-3012-000

3/8" End Mill Holder
#870-3079-000
Right Angle Attachment Photo
Right Angle Tailstock Photo

Rotary Table Right Angle Attachment
#870-3701-000

Rotary Table Right Angle Tailstock
#870-3702-000

Product

Order #

Price

Order

4-axis CNC Machining Center

999-6400-104

Was $3,975

New low price effective December 10, 2007... Click <add to cart> to see

4 axis CNC Machining Center w/MN400E
999-6400-204

Was $4,975

New low price effective December 10, 2007... Save $1,000!
4 axis CNC Desktop Center (enclosed)
999-6300-004
$4,625
4 axis CNC Desktop Center w/MN400E (enclosed)
999-6300-104
$5,625

**Click here for a detailed chart listing the differences between the above packages**



**Click here for Benchtop CNC tools and accessories.
