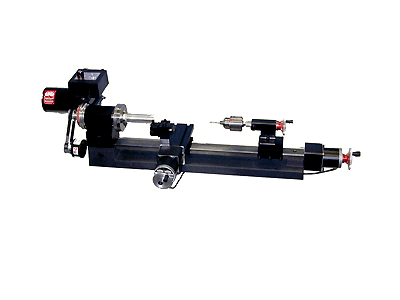

New High Capacity CNC Lathe Package Includes Quick Change Tooling & Electronic Threading

This advanced lathe package includes almost every option we offer!!! The 24" bed lathe with a 4.75" swing over bed allows larger parts to be made. The easy precise positioning of the quick change tooling and the versatitlity of electronic threading make this system the ultimate in flexibility, repeatability and convenience. Tool changes are accomplished with simple M6 Tx commands and the Electronic threading is performed using the standard G33 command specifying the length, pitch and number of passes. Also you can specify the X distance if you're making a tapered thread. This is the most versatile system we offer and is the only one that offers this level of performance in its price range.

High Speeds

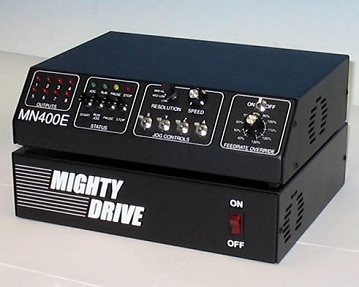

The latest technology constant current chopping drives used in the MightyDrive power electronics result in high feed and rapid rates, while the OptiStep or MN400E motion controller insures maximum reliability with the use of opto-isolated inputs and outputs on ALL connections. Other systems may use direct connection or a printer port whose reliability is not acceptable for industrial applications.

Low Cost Accessories

You'll have access to many low cost accessories and tools. The most commonly needed ones are included with the package for the convenience and added savings. A full assortment of low cost tools and accessories are available.

Quality

MicroKinetics CNC systems are expertly built and performance tested to conform to stringent standards. Detailed assembly and testing procedures and checklists are followed to insure consistent, repeatable, high quality. All components are individually tested and the complete system is tested again as a unit before shipment.

IndustryLeader

MicroKinetics offers the best reasonably priced CNC systems and free technical support in the industry. Five year warranty on electronics and one year warranty on mechanics. MicroKinetics has been offering CNC systems to educational institutions, hobbyists, research facilities and small machine shops for 15 years using the same business philosophy and expert engineering and technical support!

SPECIFICATIONS:

Swing over bed	4.75"
Swing over carriage	3.0"
Distance between centers	17.00"
Cross Slide Travel	4.25"
Tail stock spindle travel	1.50"
Resolution	.0001"
Backlash	.003" Max.
Hole thru Spindle	0.405"
Spindle Nose Thread	3/4"-16 TPI
Tail Stock Spindle Taper	#0 and #1 Morse
Spindle Speed Range	75-2800 RPM
Spindle Nose Taper	#1 Morse
Spindle Motor	1/2 HP DC

 System Includes:

• Model 4400 Deluxe Extended Lathe w/ resettable handwheels, CNC Controlled Electronic Threading, Stepper Motors (2) 175 oz-in, Quick Change Tool Set, MightyDrive high performance power driver, OptiStep Plus-PC or MN400E Motion Controller, TurnMaster Pro
  G-code Control & graphical Software, Limit switches, cables, and technical manuals .
• Included accessories: Spacer Block Kit, Tailstock Riser Block, Drill chuck & drawbar, 4 jaw hold down set, rocker tool post, #0 & #1 morse centers, face plate, Dog & screw, adjustable tailstock.
