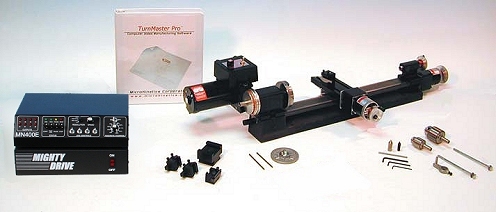

The CNC Benchtop Lathe and the CNC Desktop Lathe are complete turning machines and may be used with either the OptiStep Plus, QuickPhase Motion Controller, or MN400E, and the TurnMaster Pro G-code interpreter software. Precision ground bedways and 175 oz-in motors provide unmatched quality and performance.
SPECIFICATIONS:
|
Standard
|
HC models
|
|
| Swing over bed |
3.50"
|
4.75" |
| Swing over carriage |
1.75"
|
3.0" |
| Distance between centers |
8.00"
|
17.00" |
| Cross Slide Travel |
2.25"
|
4.25" |
| Tail stock spindle travel |
1.50" |
1.50" |
| Resolution |
.0001" |
.0001" |
| Backlash |
.003" Max. |
.003" Max. |
| Hole thru Spindle |
0.405" |
0.405" |
| Spindle Nose Thread |
3/4"-16 TPI |
3/4"-16 TPI |
| Tail Stock Spindle Taper |
#0 Morse |
#0 Morse |
| Spindle Speed Range |
75-2800 RPM |
75-2800 RPM |
| Spindle Nose Taper |
#1 Morse |
#1 Morse |
| Spindle Motor |
1/2 HP DC |
1/2 HP DC |
Included Accessories:
**Click here for a detailed chart listing the differences between the above packages** |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lathe Accessories
Quick Change Tooling
The Quick Change Tool Set allows precise and highly repeatable tool
changes. This package includes the tool post, tool holder and right hand cutting
tool, a second tool holder and left hand cutting tool, and the parting tool
holder and blade. One extra insert/blade is included with each. A standard
Allen wrench is used intially to set the height and a simple thumb action
is all that's needed to pop tools in and out. Finally a quick change tool
system that's really easy to use!
|
|
|
|
|
|
|
|
|
|
Quick Change External Threading Tool

The Quick Change External Threading Tool is an optional threading tool block for use with the Quick Change cam-lock tool post. It includes a threading tool holder and three carbide inserts.
|
|
|
|
|
|
|
|
|
|
Quick Change Internal Threading Tool
The Quick Change Internal Threading Tool is an optional threading
tool block for use with the Quick Change cam-lock tool post.
Includes both Tool holder and cutting tool.
|
|
|
|
|
|
|
|
|
|
Quick Change Boring Tool
The Quick Change Boring Tool is an optional boring
tool block for use with the Quick Change cam-lock tool post.
Includes both Tool holder and cutting tool.
|
|
|
|
|
|
|
|
|
|
Quick Change Riser Kit
The Quick Change Riser Kit allows you to work on larger pieces of material. It is an optional tool block for use with the Quick Change cam-lock tool post.
|
|
|
|
|
|
|
|
|
|
Electronic Threading Kit
Installs easily on the DeskTop or BenchTop Lathe spindle shaft.
Includes the timing belt, pulleys, hardware, and a 2000 line optical
encoder (model ES-2000). Allows straight or tapered, single or multistart
threading on the inside or outside surface without use of gears! Any
standard or non-standard thread pitches can be easily done with one
G33 command using TurnMaster
Pro. If you know the taper in degrees, simply enter on you
calculator and press Tangent. The following example does 20 TPI thread,
in 5 passes, .05" deep, with a .08749" taper (5 deg)
|
|
|
|
|
|
|
|
|
|
**Click here
for Benchtop CNC tools and accessories.
