R8
Based Quick Change Tooling
By
Royal Products
| Now you can
quickly and easily change tools on your CNC Express using this easy
to use tool change system. The way this works is to simply install
the main body part into your machines spindle and using the draw bar,
tighten it in place just like you would a recular collet. You mount
the cutting bits into your tool holders and pop them in with near
perfect registration. On the computer side, you simply put an M6 tool
change command in your program and switch tools in just a few seconds
and continue machining with automatic tool length compensation. This
saves wear and tear on your hands and increases the productivity of
any machine that uses R8 collets. |
|
|

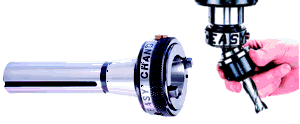

R8
Quick-Change Body
- As simple
to install as an R8 end mill holder.
- High precision
- Female taper of body and male taper of individual tool holders
ground to .0002" TIR.
- Makes
changing tools a one handed operation.
- Reduces
clearance needed between the tool and workpiece when changing
tools. This greatly reduces the amount of time spent moving
the table or retracting the quill when changing the toolholders.
- Tool holders
are available in many bore sizes to accomodate your existing
tools (3/8" tool holders are the most popular). A J6 chuck
holder is available to match your CNC Express drill chuck.
|
| Product |
Part
Number |
Price |
Quantity |
| R8
Quick-Change Body Only |
900-0096-000 |
$498 |
|
|
|
 Endmill
Tool Holder
| Bore Size |
D |
L |
Part Number |
Price |
Quantity |
| 1/8" |
1/2" |
1
3/8" |
900-0096-001 |
$154 |
|
| 3/16" |
11/16" |
1
3/8" |
900-0096-002 |
$154 |
|
| 1/4" |
11/16" |
1
3/8" |
900-0096-003 |
$154 |
|
| 3/8" |
1
3/16" |
1
3/8" |
900-0096-004 |
$154 |
|
| 1/2" |
1
3/8" |
1
3/8" |
900-0096-005 |
$154 |
|
| 5/8" |
1
9/16" |
1
5/8" |
900-0096-006 |
$154 |
|
| 3/4" |
1
13/16" |
2
3/16" |
900-0096-007 |
$164 |
|
|
|
 Drill
Chuck Tool Holder
| Jacobs Taper |
L |
Part Number |
Price |
Quantity |
| J6 |
13/32" |
900-0096-010 |
$143 |
|
| J2 |
13/32" |
900-0096-011 |
$143 |
|
| J33 |
13/32" |
900-0096-012 |
$143 |
|
|
