Multidriver Systems



Drive Subsystems Group Photo




.

The Multidriver systems featured here are designed for ease of installation and immediate operation. These rugged, enclosed units provide a complete multi-driver system consisting of drive electronics and power supplies that are prewired, pretested and ready for use. All systems feature an on/off switch, solid state relay(s), convenient motor connections, controlled AC outlets(s), and appropriate cabling which interfaces directly with either the OptiStep plus , or MN400E motion controllers.


.

View Mighty Drive spec sheet The Mighty Drive is a small footprint power driver system with a built-in power supply and drivers for up to 4 stepper motors, and 1 software-controlled AC outlet. Designed for manufacturability, the Mighty Drive provides a excellent performance with minimal cost. The MightyDrive can be used with either the OptiStep Plus or the new MN400E controllers and is typically suitable for stepper motors from 30 to 175 oz-in. Standard output current is 1.2 amps per phase @ 40 vdc. Other current settings are possible and are selected with appropriate resistors.

.

.

Product

Order #

Price

Order

Mighty Drive (1 axis)

999-3600-501

$550

Mighty Drive (2 axis)

999-3600-502

$650

Mighty Drive (3 axis)

999-3600-503

$750

Mighty Drive (4 axis)

999-3600-504

$850

.

.


.

View SuperDrive spec sheet The SuperDrive is a complete power driver system with a built-in power supply, drivers for up to 3 stepper motors, and 2 software-controlled AC outlets. The SuperDrive is also equipped with output status indicators, and an emergency stop button. The SuperDrive can be used with either the OptiStep Plus or the new MN400E controllers to provide an affordable, efficient motion control system. Suitable for stepper motors from 30 to 450 oz-in. Maximum output is 3.5 amps per phase @ 40 vdc for the full/half stepping version, and 5 amps per phase @ 40 vdc for the microstepping version.

.

.

Product

Order #

Price

Order

2 axis F/H stepping

999-3410-001

$1,279

3 axis F/H stepping

999-3410-002

$1,439

2 axis microstepping

999-3410-003

$1,465

3 axis microstepping

999-3410-004

$1,745

2 axis F/H stepping pkg

 999-6150-001

$1,835

 3 axis F/H stepping pkg

 999-6150-002

$1,995

 2 axis microstepping pkg

999-6150-003

$2,021

 3 axis microstepping pkg

999-6150-004

$2,301

.



.


Intelligent Rack-Mount Controllers

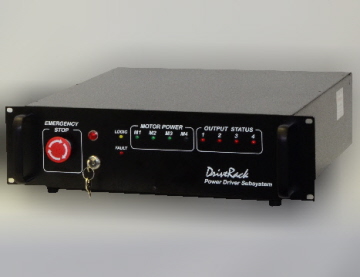

View DriveRack Spec Sheet The DriveRack is a rack-mountable industrial power driver subsystem with built-in MN400E motion controller, power supplies, and drivers for up to 4 stepper motors and 2 software-controlled AC outlets. The front panel is equipped with power, fault , and output status indicators, a keylock switch, and an emergency stop button. The DriveRack connect directly to a USB or legacy serial ports on a Windows computer to provide a high performance, efficient motion control system. Drivers are available in full/half and microstepping models with maximum output power of 10 amps @ 80 vdc. Driveracks can also be built with up to 4 software-controlled outputs.

.

Product

Order #

Price

Order

2 axis 80V F/H stepping

999-3400-212

$1,996

2 axis 80V microstepping

999-3400-214

$2,196

3 axis 80V F/H stepping

999-3400-312

$2,558

3 axis 80V microstepping

999-3400-314

$2,858

4 axis 80V F/H stepping

999-3400-412

$2,997

4 axis 80V microstepping

999-3400-414

$3,397

.

Note: The older version of the DriveRack is still available for use with the OptiStep motion controllers. Inquire for additional information.


CNC Rack-Mount Control Systems for Full-Size Machines

Rack Mount SystemMicroKinetics now offers a complete pre-engineered package to automate your full-size Bridgeport , Enco, or similar size machine. Just couple the motor shafts to your machine's drive screws, plug in the cables, turn on the power, and install the software. You can immediately jog the motors by pressing ctrl-J, and then using the cursor keys! It's that easy!



SYSTEM INCLUDES:

  • DriveRack high performance power driver
  • Built-in Motionet MN400 motion controller
  • 42M1625D Stepper Motors (4000 oz-in motors now available! (Nov 21, 2007)
  • G-code control & graphical software ( MillMaster Pro or TurnMaster Pro )
  • All cables & illustrated manuals

  • Product

    Order #

    Price

    Order

    2 axis Rack Mount System

    999-6200-102

    $2,795

    3 axis Rack Mount System

    999-6200-103

    $ 3,495

    4 axis Rack Mount System

    999-6200-104

    $3,895

    2 axis Rack Mount Microstep System

    999-6200-112

    $2,995

    3 axis Rack Mount Microstep System
    999-6200-113
    $3,795

    4 axis Rack Mount Microstep System
    999-6200-114
    $4,295

    **All systems include same number of motors as axes except 4 axis- these include three motors. A 4th motor or a rotary table can be ordered separately**
