The SQ and XL CNC milling machines now include Electronic Variable Spindle at no extra charge!

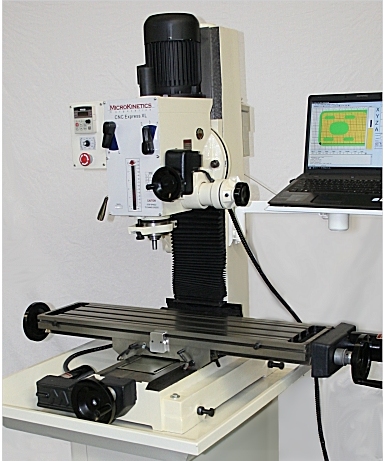

CNC Express™ Milling Machine

	» Precise, powerful, and over 150 in/min rapids! » Compatible with the latest operating systems and includes our advanced USB motion controller! » Guaranteed. Five year warranty on electronics, free software updates, and expert technical support. » Includes the stands, many accessories, and professional crating at no extra charge.

DriveRack	MN400 Motion Controller (Included in DriveRack)	MillMaster Pro for Windows

High Speeds

Low Cost Accessories

Since our CNC machines are designed around existing manual machines, they accept standard tools and accessories. This means you won't have to spend a fortune on specialized or custom tooling. The most commonly needed ones are included with the package for convenience and added savings. We offer a full assortment of low cost tools and accessories.

Quality

MicroKinetics CNC systems are expertly built and performance tested to conform to stringent standards. Detailed assembly and testing procedures and checklists are followed to insure consistent, repeatable, high quality.  All components are individually tested and the complete system is tested again as a unit before shipment.

Industry Leader

MicroKinetics offers the best reasonably priced CNC systems and knowledgeable technical support in the industry. Five year warranty on electronics and one year warranty on mechanics. MicroKinetics has been offering CNC systems to educational institutions, hobbyists, research facilities and small machine shops since 1985 using the same business philosophy, expert engineering and technical support!

SPECIFICATIONS:

Parameter	CNC Express	CNC Express SQ	CNC Express XL
X-axis Travel	17.00" (432 mm)	20.00" (508 mm)	28.00" (711 mm)
Y-axis Travel	7.00" (178 mm)	8.00" (203 mm)	12.00" (305 mm)
Z-axis Travel	5.00" (127 mm)	5.00" (127 mm)	4.75" (121 mm)
Resolution	.00025" (.00635 mm)	.00025" (.00635 mm)	.00025" (.00635 mm)
Column Type	Round Column	Dovetail	Dovetail
Head Movement	Swivel 360 Degrees 15 7/8" (403 mm)	Tilt 90 Degrees Left 90 Degrees Right	Tilt 90 Degrees Left 90 Degrees Right
Spindle Taper	R-8	R-8	R-8
Spindle Speeds	12 speeds Belt Selectable 120-2500 RPM	*New* Variable Speed 100 to 3000 RPM with included VFD. Torque selectable via gearing	*New* Variable Speed 100 to 3200 RPM with included VFD. Torque selectable via gearing
Spindle Motor	2 HP 115 VAC	2 HP 115 VAC	2 HP 115 VAC
Table Size	8 1/4" × 28 1/2"   (210 mm X 724 mm)	9 1/2" × 32 1/2"   (241.3 mm X 825.5 mm)	9 3/8" × 39 1/2"   (238 mm X 1003 mm)
Net weight	700 lbs. / 317 kg.	765 lbs. / 347 kg.	1000 lbs. / 454 kg.
Gross weight	810 lbs. / 367 kg.	875 lbs. / 398 kg.	1115 lbs. / 506 kg.

CNC EXPRESS UNIQUE ADVANTAGES:

• Limit switches in both directions on X and Y for more convenient referencing and for end of travel without relying solely on mechanical dead stops. Mechanical dead stops provide redundancy which comes into play in the event a limit sensor is not recognized for any reason.
• Lifetime timing belts derated to never break or need replacement in this application but are important in achieving low vibration and smooth operation.
• High voltage drivers offer impressive high speed performance (over 150 Inches per minute typical).
• We replace the thrust bearings with high performance Timken (tapered roller) bearings. Other inferior designs may use existing thrust bearings which limit the speed and the long term reliability of the machine.
• Custom made 470 oz-in (unipolar rating) motors deliver 41% more torque in bipolar drive method used here plus a 2 to 1 pulley ratio produces 1,329 oz-in of direct coupled equivalent torque at the shaft. Ultimately the torque available at the cutting speed is what really counts, not the holding torque. This design maximizes overall performance with a properly engineered system of mechanics and electronics resulting in very impressive performance at both cutting and rapid positioning speeds.
• Stand and other accessories are included with the system at no extra charge.
• Our own custom designed software with built in graphic test mode and geometry functions.
• More G-codes and M-codes supported, and Windows 7/Vista/XP support.



Master Control Software

MillMaster Pro for Windows controls and graphically simulates a 3-axis milling type CNC control on any PC running Windows 98/2000/XP/Vista. The CNC part program can be typed directly into the editor screen, or can be generated via a CAD/CAM program. The interactive mode allows you to see the operation performed graphically as you type each CNC line, aiding in part program development or training. For documentation purposes, you can print the graphics screen and the part program together or separately. True circular interpolation on any two axes and simultaneous linear interpolation on all axes are standard. This allows full 3-D surfacing designs to be run on the target 3 axis machine.

• Mill/drill base system with 2 HP single phase or 3 phase motor
• 5TPI (.200") ballscrews at .003" per foot max linear error
• Stepper motors (2) 34M470 (1) 23HT350
• DriveRack high performance power driver
• MN400 Continuous contouring motion controller
• MillMaster Pro for Windows G-code control & graphical software
• Limit switches, cables, and technical manuals.
• Included accessories: Cabinet stand with chip pan, shelf and latched door plus the following pictured accessories:

52 Piece Clamping Set	Drill Chuck with Key	4" Precision CNC Vise

Face Mill with 4 HSS inserts	Drill Chuck Arbor

Optional Accessories

Safety Shield/ Splash Guard* Covering the front and both sides of the table, this shield provides an added safety measure and retains chips and fluid, keeping the work area clean. The front forward slant design offers improved functionality. No drilling or tapping is needed - the guard mounts easily with two thumbscrews (provided).	6" or 8" CNC Rotary Table	Flood Coolant System* Increases tool life, lubricates metal cutting process and reduces heat buildup. Use with water soluble concentrates and light cutting oils. It comes complete with a tank , pump, 6' plastic hose, flexible nozzle with valve, and a screen strainer. The pump comes with a 6' 3-conductor cord with a three- prong plug 110VAC. 110V to 220V transformer available.
6 PC HSS End Mills Set • High Speed Steel • 3/8” shank • Includes six 2-flute end mills: 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 1/2” • Comes with wooden stand for better organization	20 PC Titanium End Mills Set • Titanium Coated for longer life • High Speed Steel • Center Cutting, Single End • Complete with wooden storage case • 10 pieces 2-flute: 3/16” - 3/4” by 16ths • 10 pieces 4-flute: 3/16” - 3/4” by 16ths	6 PC R8 Milling Collet Set Made of high grade steel and precision ground to close tolerance. Hardened. Internally thread: 7/16”-20. sizes: 1/8” to 3/4” by 8ths.

R8 Quick Change Tooling

Variable Spindle Speed

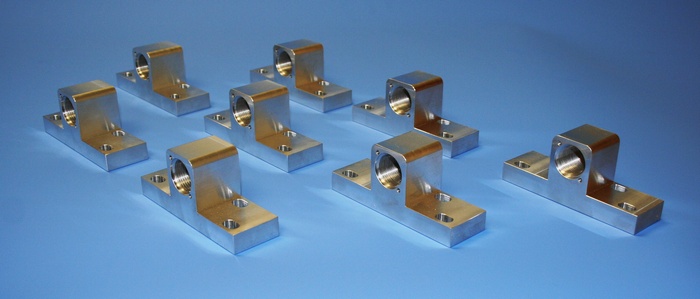

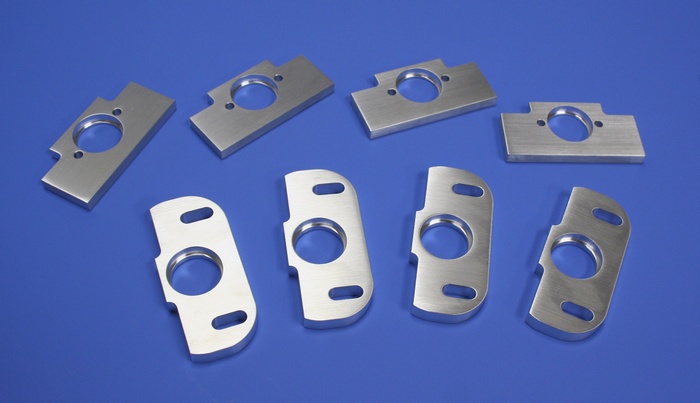

Part samples

Product	Order #	Price	Order
CNC Express Mill Package	999-6500-000	$5,995
CNC Express Mill SQ Package	999-6510-000	$7,495
CNC Express Mill XL Package	999-6520-000	$8,495
GTS Option Group (Includes 4th axis driver and microstepping upgrade plus all items with * below) (If bought seprately: $4,125)	999-6500-200	Save on Group Option $3,500
CNC Express Conversion Kit only	999-1000-200	$4,395
Flood Coolant System*	999-6500-010	$279
SafetyShield/Splash Guard *	999-6500-020	$195
6" CNC Rotary Table*	900-0095-006	$945
8" CNC Rotary Table	900-0095-008	$995
Variable Spindle Speed*	999-6500-040	Included free of charge with SQ or XL Models $650
Tapping System Tension/Compression	999-6500-080	Limited time special only $995$1,495
Quickchange Tooling System With 6 Tool Holders*	999-6500-090	$1,310
Suspension Arm	999-6500-003	$94
6 PC R8 Milling Collet Set	999-6500-070	$44
6 PC HSS End Mills Set	999-6500-050	$22
20 PC Titanium End Mills Set	999-6500-060	$110
