The Best Price - Performance CNC Mill in Its Class!!! |
|

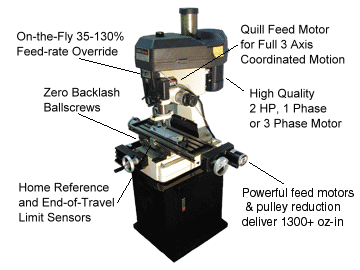

CNC Express™ Milling System
|
 |
|
Precise, powerful, and over 150
in/min high speed positioning and over 120
in/min cutting performance!
|
|
To learn about our hands on CNC training Click here
|
||
 |
 |
 |
-
High Speeds
- The latest technology constant current chopping drives used in the DriveRack power electronics result in very high feed and rapid rates, while our fully optoisolated motion controller insures maximum reliability with the use of opto-isolated inputs and outputs on ALL connections. Other systems may use direct connection or a printer port whose reliability is typically not suitable for industrial applications.
-
Low Cost Accessories
-
Since our CNC machines are designed around existing manual machines, they accept standard tools and accessories. This means you won't have to spend a fortune on specialized or custom tooling. The most commonly needed ones are included with the package for the convenience and added savings. We offer a full assortment of low cost tools and accessories.
-
Quality
-
MicroKinetics CNC systems are expertly built and performance tested to conform to stringent standards. Detailed assembly and testing procedures and checklists are followed to insure consistent, repeatable, high quality. All components are individually tested and the complete system is tested again as a unit before shipment.
-
Industry Leader
-
MicroKinetics offers the best reasonably priced CNC systems and knowledgeable technical support in the industry. Five year warranty on electronics and one year warranty on mechanics. MicroKinetics has been offering CNC systems to educational institutions, hobbyists, research facilities and small machine shops since 1985 using the same business philosophy, expert engineering and technical support!
-
SPECIFICATIONS:
-
X-axis Travel (may be slightly less with limits) 17.00" (432 mm)
Y-axis Travel 7.00" (178 mm)
Z-axis Travel 5.00" (127 mm)
Resolution .00025" (.00635 mm)
Column Diameter 4 1/2" (114 mm)
Swing 15 7/8" (403 mm)
Spindle Taper R-8
Head Swivel 360 degrees
Spindle Speeds 12 speeds (120-2500 RPM)
Spindle Motor 2 HP 115 VAC
Table Size 8 1/4" × 28 1/2" ( (210 mm X 724 mm)
Net weight 700 lbs. / 317 kg.
-
CNC EXPRESS UNIQUE ADVANTAGES:
-
- Limit switches in both directions on X and Y for more convenient referencing and for end of travel without relying solely on mechanical dead stops. Mechanical dead stops provide redundancy which comes into play in the event a limit sensor is not recognized for any reason.
- Lifetime timing belts derated to never break or need replacement in this application but are important in achieving low vibration and smooth operation.
- High voltage drivers offer impressive high speed performance (over 150 Inches per minute typical).
- We replace the thrust bearings with high performance Timken (tapered roller) bearings. Other inferior designs may use existing thrust bearings which limit the speed and the long term reliability of the machine.
- Custom made 470 oz-in (unipolar rating) motors deliver 41% more torque in bipolar drive method used here plus a 2 to 1 pulley ratio produces 1,329 oz-in of direct coupled equivalent torque at the shaft. Ultimately the torque available at the cutting speed is what really counts, not the holding torque. This design maximizes overall performance with properly engineered system of mechanics and electronics resulting in very impressive performance at cutting and rapid positioning speeds.
- Stand and other accessories are included with the system at no extra charge.
- Our own custom designed software with built in graphic test mode.
- More G-codes and M-codes supported, and Windows 98/XP/2000/Vista support.
-
-
Master Control Software
-
MillMaster Pro for Windows controls and graphically simulates a 3-axis milling type CNC control on any PC running Windows 98/2000/XP/Vista. The CNC part program can be typed directly into the editor screen, or can be generated via a CAD/CAM program. The interactive mode allows you to see the operation performed graphically as you type each CNC line, aiding in part program development or training. For documentation purposes, you can print the graphics screen and the part program together or separately. True circular interpolation on any two axes and simultaneous linear interpolation on all axes are standard. This allows full 3-D surfacing designs to be run on the target 3 axis machine.
-
- Mill/drill base system with 2 HP single phase or 3 phase motor
- 5TPI (.200") ballscrews at .003" per foot max linear error
- Stepper motors (2) 34M470 (1) 23HT350
- DriveRack high performance power driver
- MN400 Continuous contouring motion controller
- MillMaster Pro for Windows G-code control & graphical software
- Limit switches, cables, and technical manuals.
- Included accessories: Cabinet stand with chip pan, shelf and latched door plus the following pictured accessories:
 |
 |
 |
|
52 piece clamping set
|
Drill chuck with key
|
Angle drill press vise
|
 |
 |
|
Face mill with 4 HSS inserts
|
Drill chuck arbor
|
Optional Accessories
 |
 |
 |
|
Safety Shield/ Splash Guard Covering the front and both sides of the table, this shield provides an added safety measure and retains chips and fluid, keeping the work area clean. The front forward slant design offers improved functionality. No drilling or tapping is needed - the guard mounts easily with two thumbscrews (provided). |
Flood Coolant System Reduces heat around the cutting tool and helps achieve a smoother finish on your machined parts, this system works with water soluble and light cutting oil. It comes complete with a tank w/baffle, pump, 6' plastic hose, flexible nozzle and valve, and a screen strainer. The pump is submersible and comes with a 6' 3-conductor cord with a three- prong plug. 220V pump available on request. |
|
 |
 |
 |
|
6 PC HSS End Mills Set • High Speed Steel • 3/8” shank • Includes six 2-flute end mills: 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 1/2” • Comes with wooden stand for better organization |
20 PC Titanium End Mills Set • Titanium Coated for longer life • High Speed Steel • Center Cutting, Single End • Complete with wooden storage case • 10 pieces 2-flute: 3/16” - 3/4” by 16ths • 10 pieces 4-flute: 3/16” - 3/4” by 16ths |
6 PC R8 Milling Collet Set Made of high grade steel and precision ground to close tolerance. Hardened. Internally thread: 7/16”-20. sizes: 1/8” to 3/4” by 8ths. |
|
|
|
|
Part samples
|
Product |
Order # |
Price |
Order |
|
CNC Express Mill Package |
999-6500-000 |
$5,995 |
|
|
CNC
Express Conversion Kit
|
999-1000-200
|
$4,395
|
|
|
Flood Coolant System |
999-6500-010 |
$279 |
|
|
Safety Shield/Splash Guard |
999-6500-020 |
$195 |
|
|
8"
CNC Rotary Table
|
900-0095-008
|
$995
|
|
|
Variable
Spindle Speed
|
999-6500-040
|
$650
|
|
|
6
PC R8 Milling Collet Set
|
999-6500-070
|
$44
|
|
|
6
PC HSS End Mills Set
|
999-6500-050
|
$22
|
|
|
20
PC Titanium End Mills Set
|
999-6500-060
|
$110
|
|
