34M470

34M470 Photo

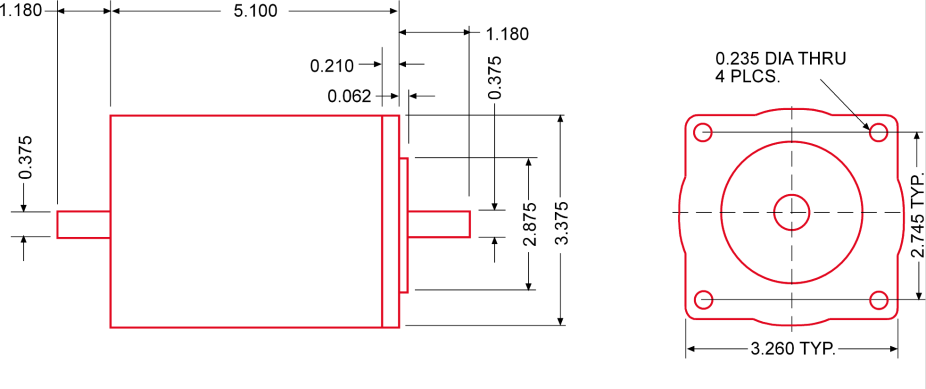

SPECIFICATIONS:

Holding Torque....... 470 oz-in
Rotor Inertia.......... 10.2 oz-in2
Step Angle............... 1.8 deg.

Parallel

Series

Half Coil

Resistance

.21 ohms

.84 ohms

.42 ohms

Rated Current

8.4 amps

4.2 amps

5.9 amps

Rated Voltage

1.75 volts

3.5 volts

2.5 volts

Inductance

2.6 mH

10.4 mH

2.6 mH

MOTOR POWER CONNECTORS:

4 Pin Connector Diagram

4 pin female circular connector-front view cable length-10' standard


WIRING CONFIGURATIONS:

8 Lead Parallel Wiring Diagram

8 Lead Series Wiring Diagram

8 Lead Half Coil Wiring Diagram

8 lead parallel (standard)

            8 lead series

            8 lead half coil




Torque Curves

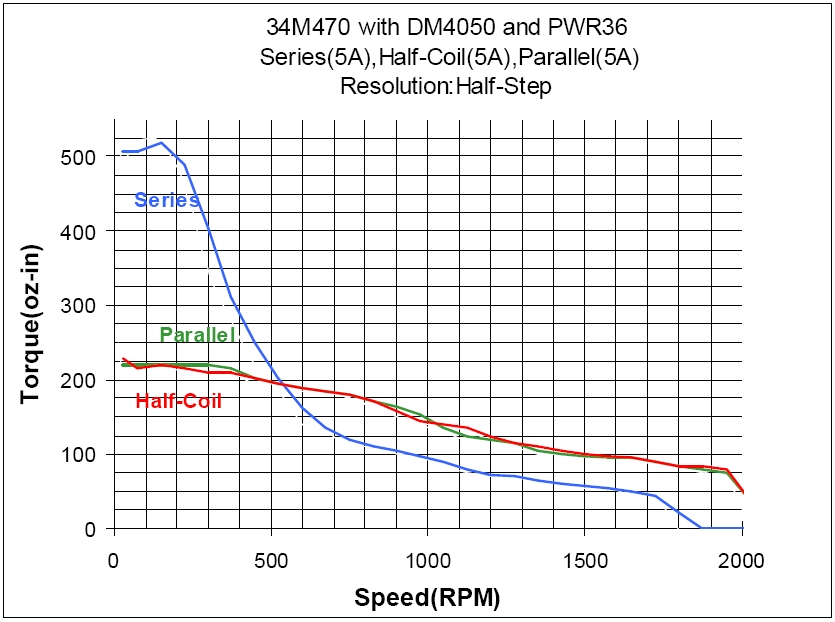

34M470 Torque Curve (w/DM4050)

34M470 Torque Curve (w/DR8010 & PWR36)

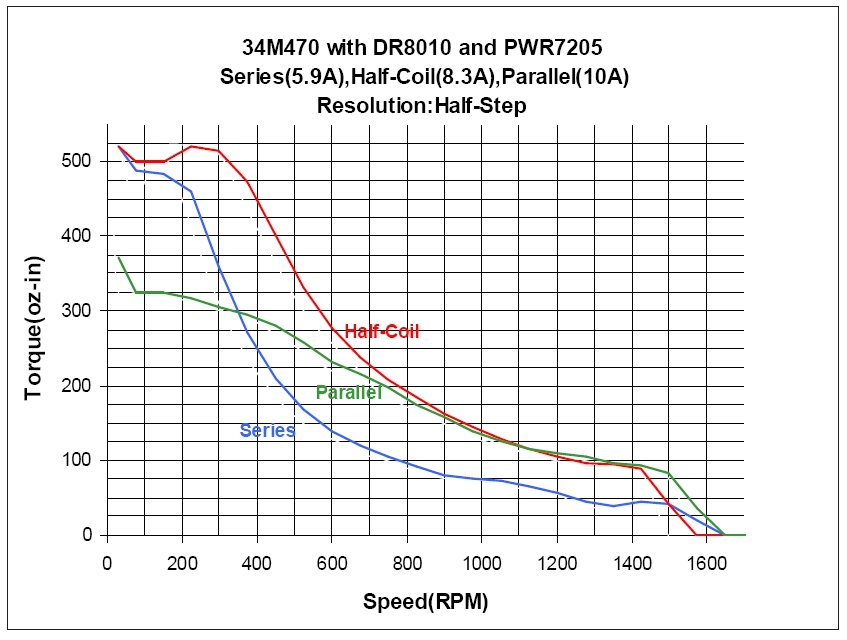

34M470 Torque Curve (w/DR8010 & PWR7205)

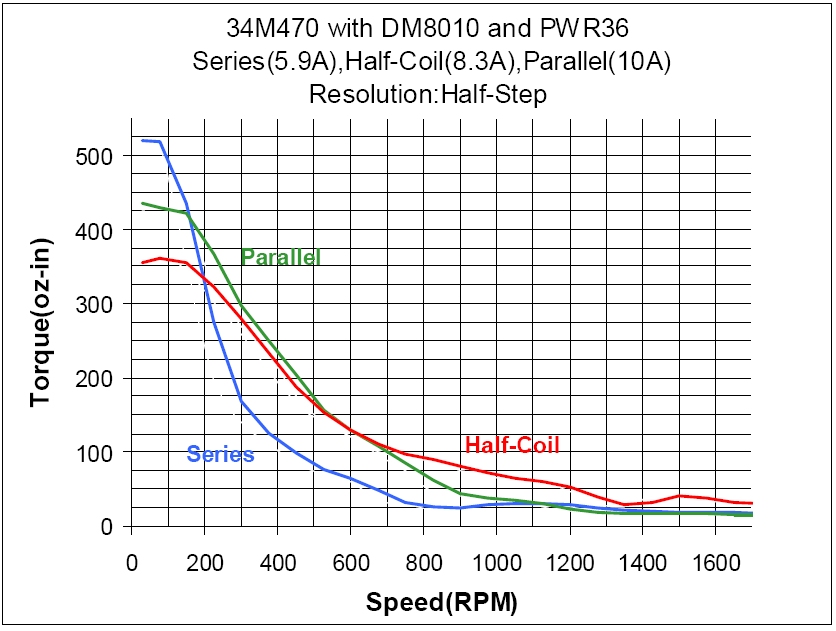

34M470 Torque Curve (w/DM8010 & PWR36)

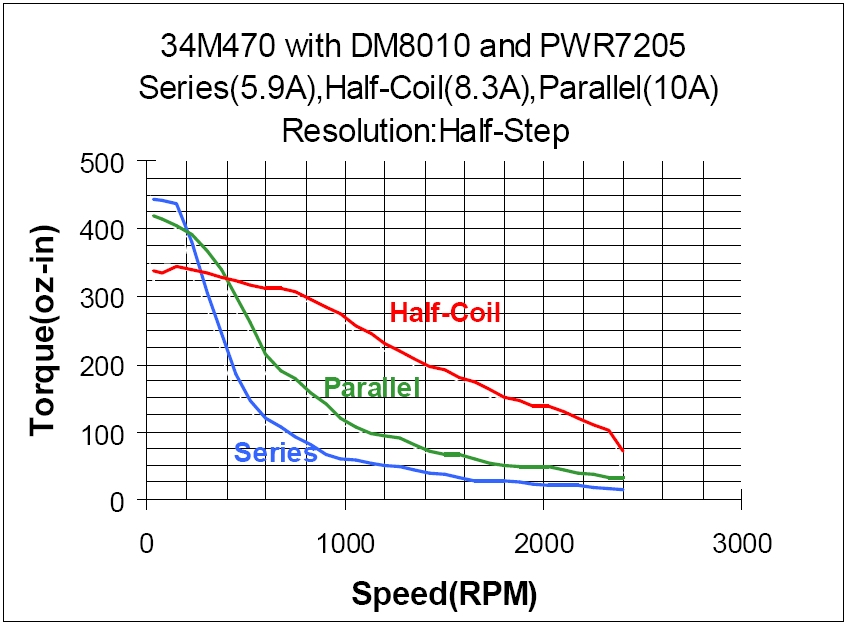

34M470 Torque Curve (w/DM8010 & PWR7205)
