23m80 stepper motor information from MicroKinetics

23M80

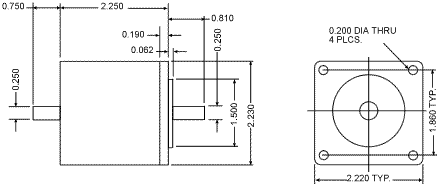

23M80 Photo ../stepper_motors/23M80 Diagram

SPECIFICATIONS:

Holding Torque........ 83 oz-in
Rotor Inertia......... 0.79 oz-in2
Step Angle............... 1.8 deg.
Weight....................... 1.2 lbs

Center Tap

Series
Resistance

5.0 ohms

8.6 ohms
Rated Current

1.2 Amps

0.85 Amps
Rated Voltage

6.0 volts

8.5 volts
Inductance

8.0 mH

32 mH

MOTOR POWER CONNECTORS:

5 Pin Connector Diagram

4 Pin Connector Diagram

5 pin female DIN connector-front view

4 pin female circular connector-front view cable length-10' standard


WIRING CONFIGURATIONS:

6 Lead Center Tapped Wiring Diagram 6 Lead Series Wiring Diagram

6 Lead Center Tapped (standard)

6 Lead Series





Torque Curves

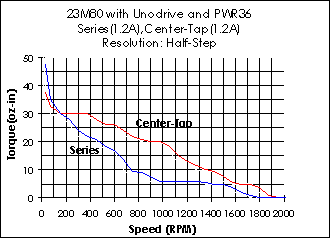

23M80 Torque Curve (w/Unodrive)

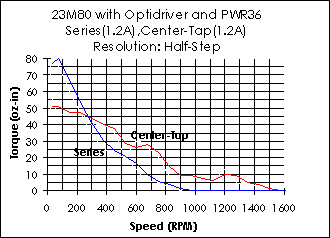

23M80 Torque Curve (w/Optidriver)

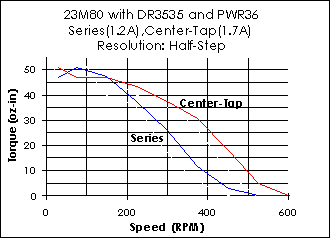

23M80 Torque Curve (w/DR3535)

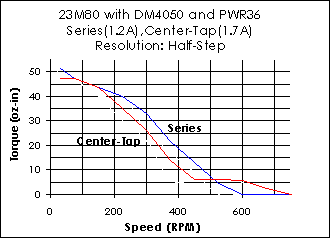

23M80 Torque Curve (w/DM4050)
