34HT1275

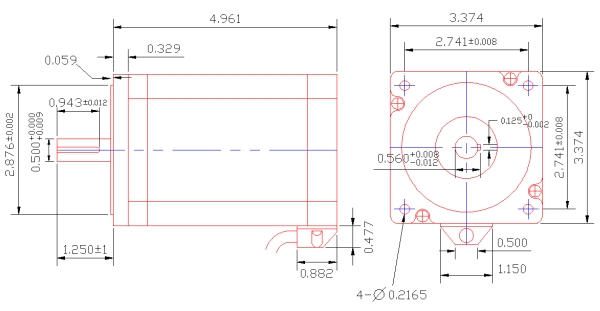

34HT1275 Photo



SPECIFICATIONS:

Holding Torque....... 1275 oz-in
Rotor Inertia.......... 16.4 oz-in2
Step Angle............... 1.8 deg.
Weight....................... 10.0 lbs

Resistance

0.2 ohms
Rated Current

9.5 Amps
Rated Voltage

1.9 volts
Inductance

2.3 mH

MOTOR POWER CONNECTORS:

4 Pin Connector Diagram

4 pin female circular connector-front view cable length-10' standard


WIRING CONFIGURATIONS:

6 Lead Center Tapped Wiring Diagram



Torque Curves

(Coming Soon)
