42HT1700

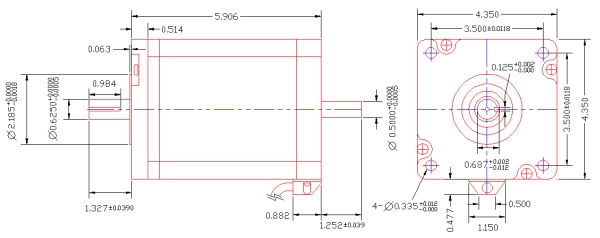

34HT1700 Photo

SPECIFICATIONS:

Holding Torque....... 1700 oz-in
Rotor Inertia.......... 59.6 oz-in2
Step Angle............... 1.8 deg.
Weight....................... 19.0 lbs

Resistance

0.15 ohms
Rated Current

9.0 Amps
Rated Voltage

1.35 volts
Inductance

1.6 mH

MOTOR POWER CONNECTORS:

4 Pin Connector Diagram

4 pin female circular connector-front view cable length-10' standard


WIRING CONFIGURATIONS:

6 Lead Center Tapped Wiring Diagram



Torque Curves

(Coming Soon)
