PWR14E
14VDC, 5A Power Supply



FEATURES: AC input voltage (115 VAC) Fused output Transient protection

The Power14E may be used in any application that requires an unregulated 14-18 volt DC power source. Convenient banana jacks on rear panel are color coded black and red for polarity.

SPECIFICATIONS:

Voltage input	115 volts
Maximum Current Consumption	1 amp at 115 volts
Voltage outputs	14 volts unregulated at 3 Amps

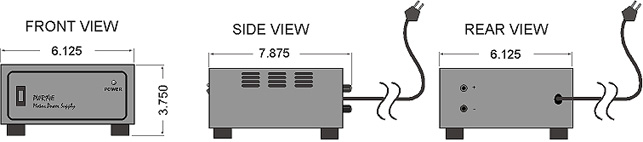

Physical dimensions	6.125" w × 7.875" d × 3.75" h
Working temperature range	32° F ~ 122° F (0° C ~ 50° C)
Warranty	5 years parts & labor

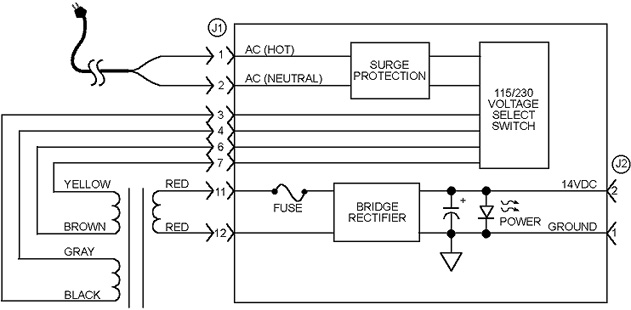

BLOCK DIAGRAM
