PWR36
36VDC, 10A Power Supply



FEATURES:

  • Single board provides both high-voltage motor power and +5V logic power
  • Small footprint requires minimal mounting space
  • User selectable AC input voltages
  • Two LED’s indicate status of output voltages
  • Separately fused DC outputs for easy fault isolation
  • Includes transformer, cables, and PCB mount hardware
  • Power ok signal provides early warning of power interruption
PWR36 Photo

The PWR36 is a complete power source for a multi-axis stepper motor driver. It is designed to provide ample power and excellent regulation. Built-in MOV transient suppression protects the electronics from damage caused by surges and spikes on the AC line.

SPECIFICATIONS:

Voltage input

115 or 230 volts, selectable
2.5 Amps max at 115 volts
Voltage outputs

36 volts unregulated at 10 Amps
5 volts regulated at 3 Amps
Physical dimensions

(power board) 4.2" w × 4.56" d × 2.7" h
(transformer) 4.5" w × 3.3" d × 3.8" h
Working temperature range

32° F ~ 158° F (0° C ~ 70° C)
Warranty

5 years parts & labor


PWR36 Block Diagram

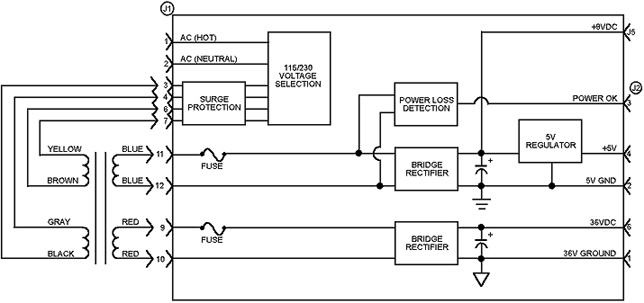

BLOCK DIAGRAM


PWR36 Mechanical Outline

PWR36 Transformer Mechanical Outline

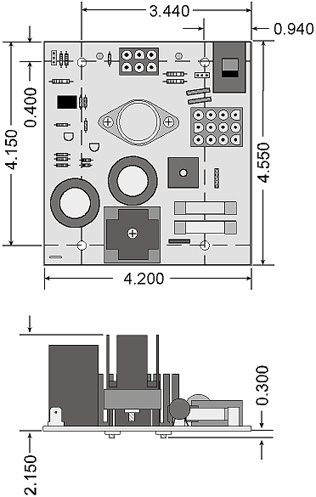

PCB MECHANICAL OUTLINE

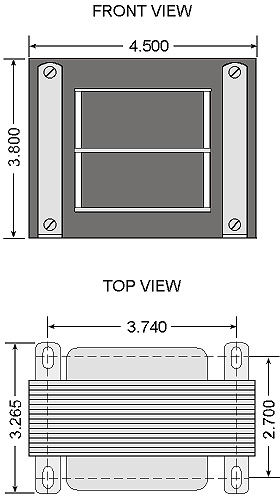

TRANSFORMER MECHANICAL OUTLINE
