PWR5
5VDC, 3A Power Supply



FEATURES: Efficient switching design Compact 115/230V switchable Ideal for powering optoisolation circuits on most drivers Can be used to provide +/-12VDC power to ServoStep

SPECIFICATIONS:

Voltage input	Jumper selectable input for 115VAC/230VAC 115 VAC @ 1A; 230VAC @ 0.5A
Voltage outputs	+5VDC @ 3A +12VDC @ 2A -12VDC @ 0.35A
Physical dimensions	5.0" w × 3.0" d × 1.525" h
Working temperature range	32° F ~ 158° F (0° C ~ 70° C)
Warranty	6 months parts & labor

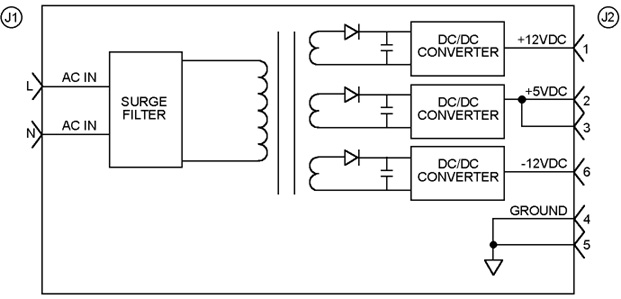

BLOCK DIAGRAM

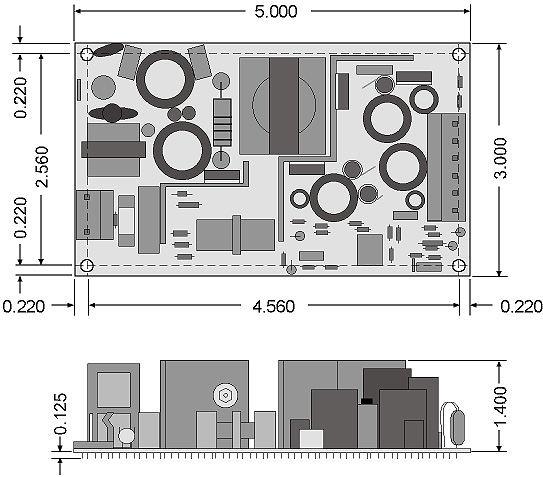

MECHANICAL OUTLINE
