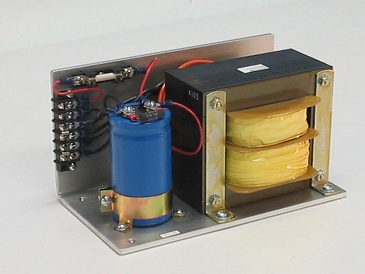

PWR72
72VDC, 10A Power Supply



FEATURES:

  • AC input voltage jumper selectable between 115 VAC and 230 VAC
  • Fused output
  • Threaded mounting holes for easy installation
  • Large filter capacitor for improved motor response

SPECIFICATIONS:

Voltage input

115 or 230 volts, selectable
Current Consumption

6 Amps at 115 volts/ 3 Amps at 230 volts

Voltage outputs

72VDC unregulated
Current output

10 Amps
Physical dimensions

9.0" w X 5.0" d X 4.75" h

Working temperature range

32° F ~ 122° F (0° C ~ 50° C)
Warranty

5 years parts & labor


PWR7205 Block Diagram

BLOCK DIAGRAM

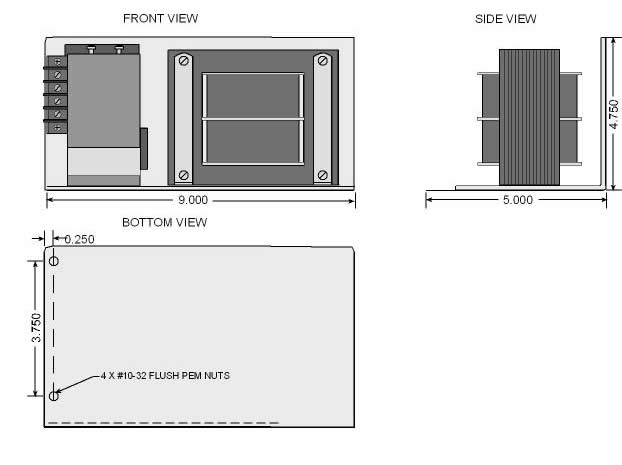

MECHANICAL OUTLINE


WIRING CONNECTIONS

For 115 VAC input, place the jumpers across 3 & 4 ,and across 5 & 6.
For 230 VAC input, place one jumper across 4 & 5.
