Design and CNC Control Software

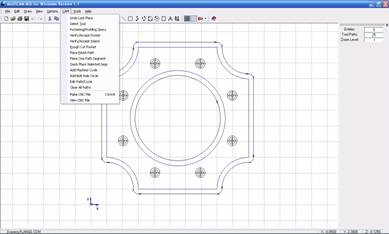

MultiCam Mill Screen Shot MultiCam for Windows is a Computer Aided Manufacturing (CAM) program used for milling and turning which allows entry of a part design by using lines, arcs, circles, and rectangles or by importing a DXF file from AutoCAD or other drafting software. Features include automatic roughing cuts, automatic pockets with island(s) avoidance, multiple sweeps placed to any finish depth, point and click finishing passes, with metric and inch support. Supports lead-in/lead-out, gouge avoidance, and spiral pocketing. Output format is industry standard RS274D CNC code which runs directly on MillMaster Pro and TurnMaster pro with no need for any postprocessor setup.



Product

Additional Details

Item #

Price

Order

New low price. Free updates included!

$

New low price. Free updates included!

$




MillMaster Pro Screen Shot MillMaster Pro for Windows is a G-CODE controller and graphical simulator for routing, milling, and torch cutting machines. It accepts industry standard G & M codes and has canned cycles including drilling, boring and deep profiling. Other features include full color animated graphics which simulate all tool movements and cutting operations, full screen text editor, external speed control for wire EDM, easy tool positioning directly from keyboard, auto ramping on high feed moves, metric and inch programming, true circular interpolation on any two axes, and simultaneous linear interpolation on all three axes. Rotary table and S-code spindle speed control. Ability to import Industry Standard .DXF files and automatically convert them to G-code. The program also allows the user to customize the tool and icon graphics to fit individual needs.

Product

Additional Details

Item #

Price

Order

New low price! Free updates included!

$

New low price! Free updates included!

$




TurnMaster Pro Screen Shot TurnMaster Pro for Windows is a machine control program supporting industry standard G & M codes and canned cycles for turning down outside diameter and reducing part length. Other features include full color animated graphics which simulate all tool movements, threading encoder input support for internal and external threading operations, easy tool positioning directly from the keyboard, auto ramping on high feed moves, metric and inch programming modes, and true circular and linear interpolation. Tool turret and S-code spindle speed control are also included. TurnMaster Pro for Windows builds on 10 years of development and refinement of the original Turnmaster Pro for Dos and adds the conveniences of the windows environment, the ability to load very large programs without chaining and using digital images of actual cutting tools.





Product

Additional Details

Order #

Price

Order

New low price! Free updates included!



$

New low price! Free updates included!



$
